Export a plot to CAD, GIS, and your client.
Send a finished plot out as PDF, DXF, Shapefile, KML, or GeoJSON. Exports never cost a credit, and paid plans add custom title blocks.
From plot to deliverable
Finish the plot, choose a format, and download the files.

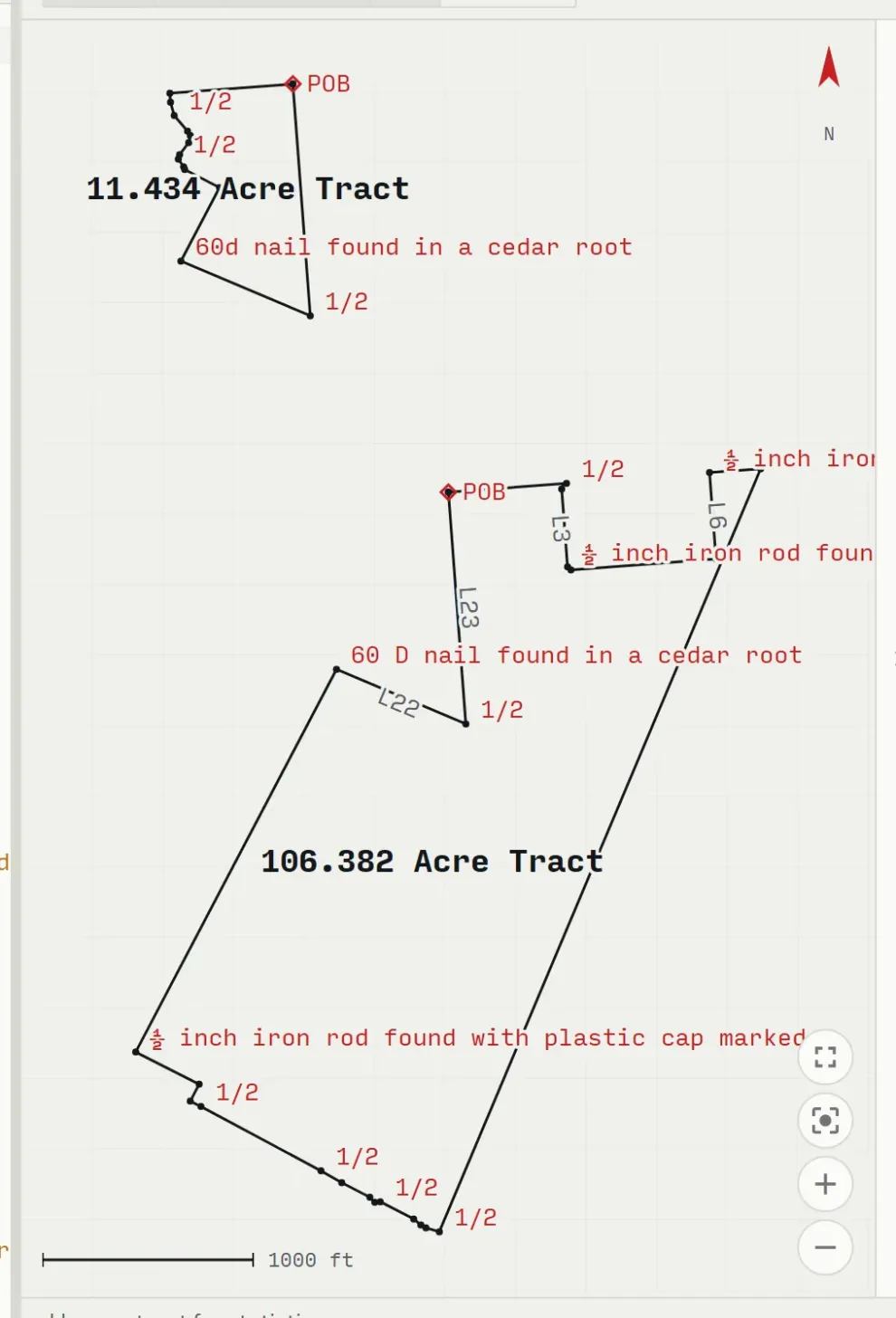

Finish the plot
Plot by hand or from a document, then confirm the calls and checks read the way you expect.
Choose a format
Pick PDF for the file, DXF for CAD, or Shapefile, KML, or GeoJSON for GIS. Set the title block and layers you need.
Download the artifacts

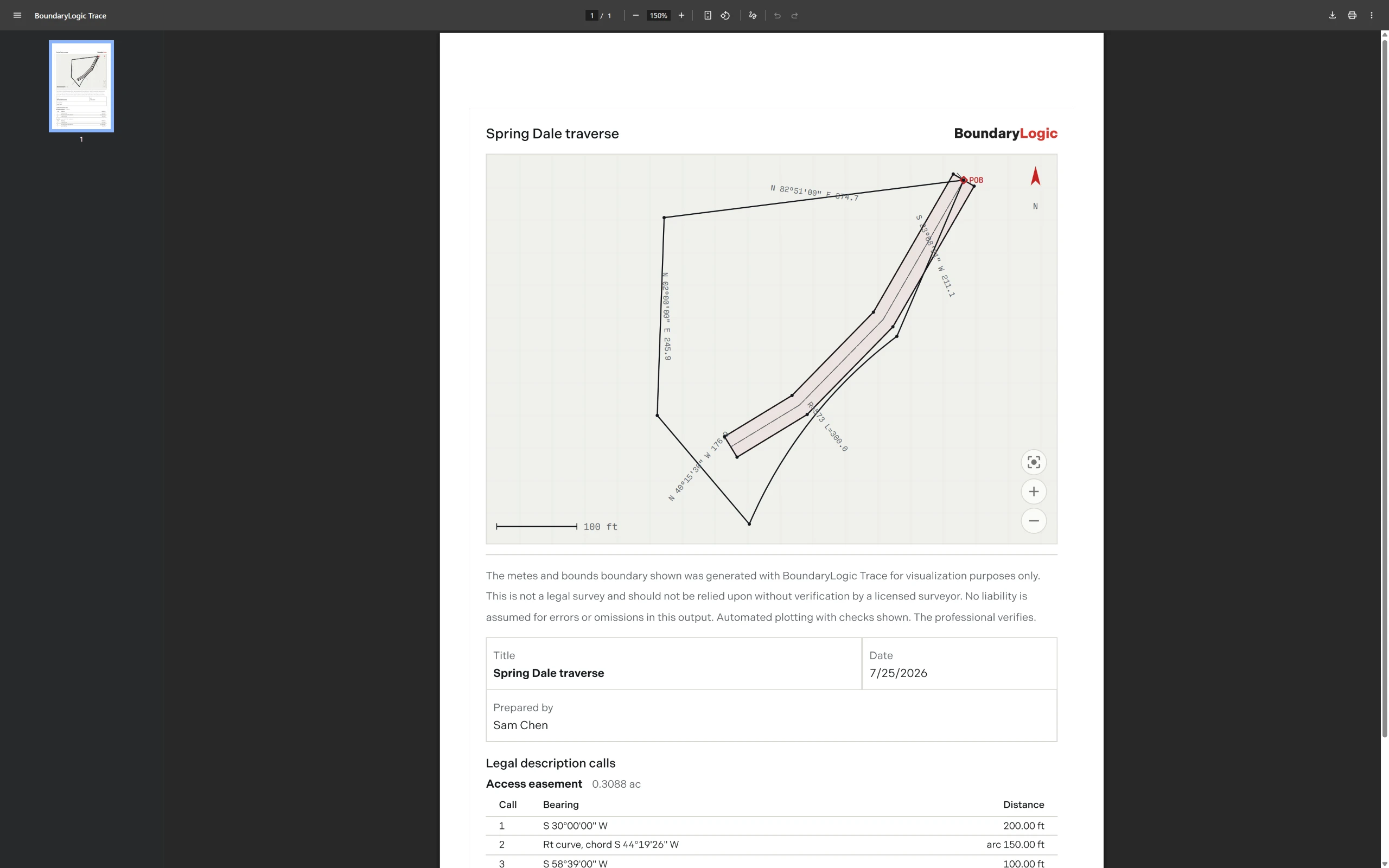

Export writes the files, with the closure and precision readout carried alongside the geometry.
What Trace exports
- PDF exhibit
- Custom title block on Expert
- [Logo on title block: confirm]
- DXF
- Layers preserved
- Polylines and labels
- Shapefile
- KML
- GeoJSON
Exports, answered
Do exports cost a credit?
No. Exports never cost a credit. Credits apply only to AI plots.
Which formats can I export?
PDF, DXF, Shapefile, KML, and GeoJSON. PDF and DXF are free, and the others are on paid plans.
Can I add my own title block and logo?
Custom title blocks are available on the Expert plan. [Placeholder: logo placement details to confirm.]
Will my CAD layers come through in DXF?
Yes. The DXF preserves layers, polylines, and labels. The Sheet View lets you inspect them first.
Which exports are free?
PDF and DXF are free on every account. Shapefile, KML, and GeoJSON are on paid plans.
Export your next plot.
PDF and DXF are free, and exports never cost a credit.
