Trace · Feature

BoundaryLogic Trace's Free Deed Plotter

A free deed plotter that runs in your browser. Enter calls with the quadrant shorthand you already know and watch the plot draw as they land. Manual plotting and PDF and DXF are free forever, with nothing to install.

Start plotting free

Plot legal descriptions by hand with BoundaryLogic Trace's Free Deed Plotter

A browser based deed plotter that replaces the desktop tools, free to use with nothing to install.

01

Type the calls

Enter bearings, distances, and curves with quadrant shorthand. The entry works the way surveyors and abstractors already write calls.

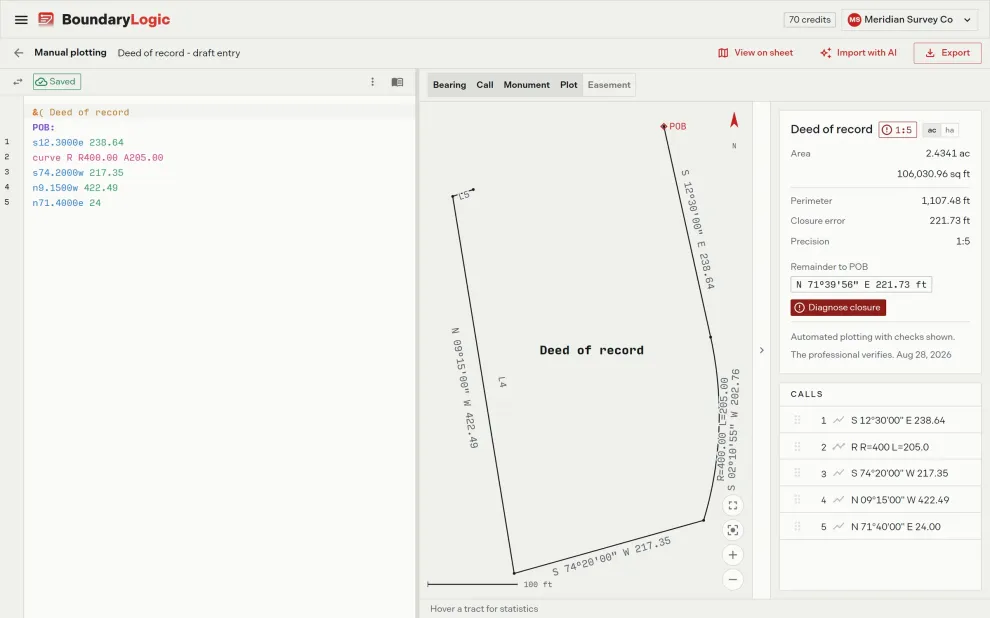

A legal description being typed by hand in Trace with the plot drawing as calls landA legal description being typed by hand in Trace with the plot drawing as calls land
S 74°20'00" W 217.35
02

Watch the plot draw

Each call draws as you enter it, so the boundary builds up on screen and a mistake is easy to catch.

The plot drawing as calls land in TraceThe plot drawing as calls land in Trace
03

Export to PDF and DXF, free

Send the finished plot out as a PDF or a DXF at no cost. Nothing to license, nothing to install.

PDF and DXF export options in TracePDF and DXF export options in Trace

What manual plotting includes

Entry
  • Quadrant shorthand
  • Bearings and distances
  • Curves and chords
  • PLSS calls
Shows
  • Closure error
  • Gaps and overlaps
  • Precision ratio
  • Area and perimeter
Free
  • Manual plotting
  • PDF and DXF export
  • No install
  • Runs in the browser

BoundaryLogic Trace's Free Deed Plotter, answered

Yes. BoundaryLogic Trace’s Free Deed Plotter is manual plotting in Trace, and manual plotting is free forever. Enter the calls from a deed by hand and watch the boundary draw, with closure error and precision shown as you work.

Yes. Manual plotting is free forever, on every account, with no card required. Only AI Automated Plotting uses credits, so plotting by hand never draws one.

PDF and DXF, free on every plan. Shapefile, KML, KMZ, GeoJSON, and PNG export are on paid plans. Exports never use credits.

No. BoundaryLogic Trace’s Free Deed Plotter runs in the browser, so there is nothing to download or license.

It covers metes and bounds, curves, and PLSS calls in the browser, with closure error, precision, and area shown as the calls land. If the description you are plotting is a metes and bounds call rather than a whole deed, the free metes and bounds plotter is the same free workspace, described for that job.

Quadrant bearing shorthand, the way calls are commonly written in a deed, plus distance and curve entry.

They are separate from the Free Deed Plotter. AI Automated Plotting reads the document and drafts the calls for you, and the trial is 10 free AI plots unlocked by adding a card. No charge is made now. The trial is granted once per user and once per payment method.

Related features

AI Automated PlottingRead a deed and draft the traverse automatically.Flexible exportsDXF, GeoJSON, and structured output.VerificationsArea, bearings, and closure math.

Start plotting with BoundaryLogic Trace's Free Deed Plotter.

Manual plotting and PDF and DXF are free forever. Nothing to install.
